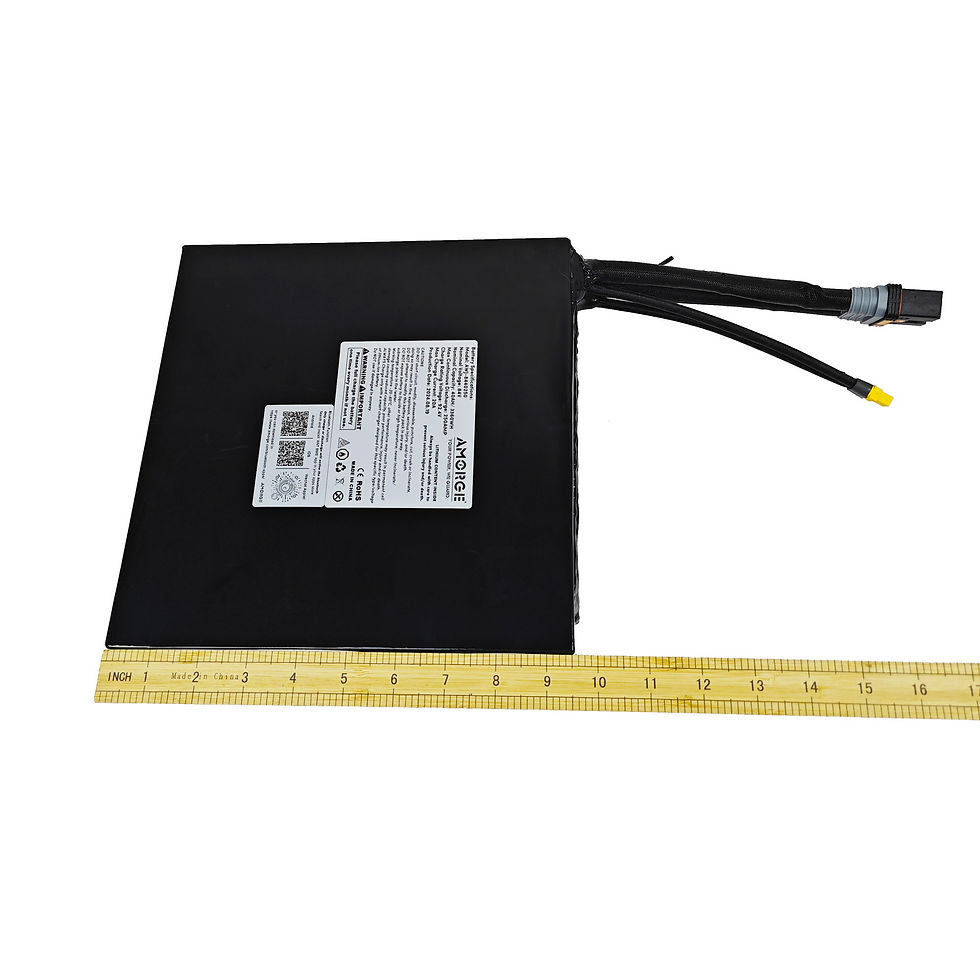

AMORGE 22S10P 80V 40AH 300A Lithium Battery Pack with ANT Bluetooth BMS for Electric Bike
Nominal Voltage | 80V |
Nominal Capacity | 40AH/ 3200WH |
Max Continuous Discharge Current | 300A |
Max Pulse Discharge Current | 400A |
Max Support Rating Power | 24KW |
Max Support Pulse Power | 32KW |
Charge Rating Voltage | 92.4V |
Max Charge Current | 20A |
Cell Type | EVE 40P |
BMS Type | ANT Bluetooth BMS |
Discharge Port | QS10 (customizable) |
Charge Port | XT60 (customizable) |
Dimensions | 6*9.75*10 inches (customizable) |
Warranty | 1 YEAR |
Options with different cells
80V | 22S10P | ANT Bluetooth BMS | 6*9.75*10 inches | Customizable |
Option | Cell Type | Capacity | Continuous/ Peak Discharge | Rated/ Peak Power |
1 | EVE40P | 40AH/ 3200WH | 300/ 400A | 24/ 32KW |
2 | EVE 40PL | 40AH/ 3200WH | 400/ 500A | 32/ 40KW |
3 | EVE 50PL | 50AH/ 4000WH | 420/ 600A | 33.6/ 48KW |
4 | Samsung 50S | 50AH/ 4000WH | 250/ 350A | 20/ 28KW |
5 | BAK 45D | 45AH/ 3600WH | 300/ 500A | 24/ 40KW |
6 | RS 50 | 50AH/ 4000WH | 400/ 500A | 32/ 40KW |
7 | Molicel P42A | 42AH/ 3360WH | 340/ 450A | 27.2/ 36KW |
8 | Molicel P45B | 45AH/ 3600WH | 340/ 450A | 27.22/ 36KW |
9 | Molicel P50B | 50AH/ 4000WH | 400/ 500A | 32/ 40KW |
