AMORGE 16S10P 60V 40AH 220A Lithium Battery Pack for MX500 SX500 MX650 Dirt Bike
Nominal Voltage | 60V |
Nominal Capacity | 40AH/ 2400WH |
Max Continuous Discharge Current | 220A |
Max Pulse Discharge Current | 400A |
Max Support Rating Power | 13.2KW |
Max Support Pulse Power | 24KW |
Charge Rating Voltage | 67.2V |
Max Charge Current | 20A |
Cell Type | EVE 40P |
BMS Type | ANT Bluetooth BMS |
Discharge Port | QS8/ QS10 (customizable) |
Charge Port | XT60 (customizable) |

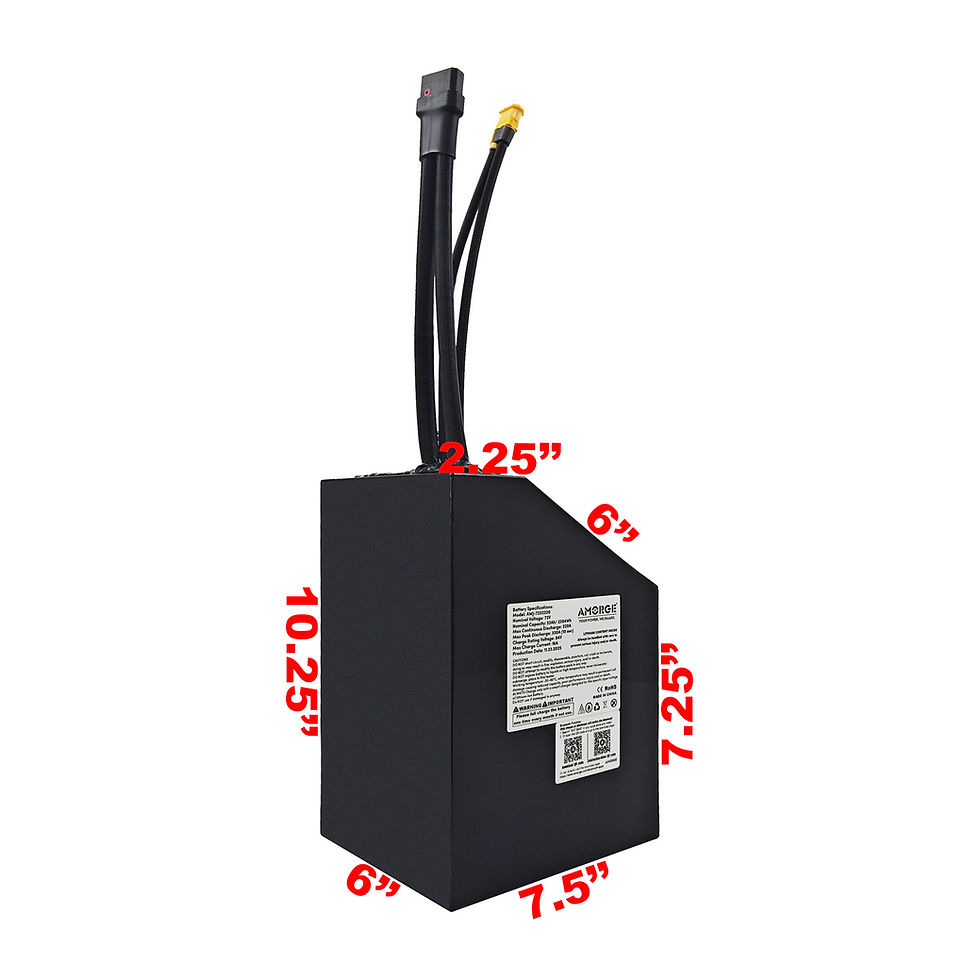

Dimensions | 10.25*7.5*6*7.25*6*2.25 inches |
Warranty | 1 YEAR |
Options with different cells
60V | 16S10P | ANT Bluetooth BMS | Customizable | 10.25*7.5*6*7.25*6*2.25 inches |
Option | Cell Type | Capacity | Continuous/ Peak | Rated/ Peak Power |
1 | EVE 40P | 40AH/ 2400WH | 220/ 400A | 13.2/ 24.0KW |
2 | EVE 40PL | 40AH/ 2400WH | 220/ 450A | 13.2/ 27.0KW |
3 | EVE 50PL | 50AH/ 3000WH | 220/ 600A | 13.2/ 36.0KW |
4 | Samsung 50S | 50AH/ 3000WH | 220/ 350A | 13.2/ 21.0KW |
5 | BAK 45D | 45AH/ 2700WH | 220/ 500A | 13.2/ 30.0KW |
6 | RS 50 | 50AH/ 3000WH | 220/ 500A | 13.2/ 30.0KW |
7 | Molicel P42A | 42AH/ 2520WH | 220/ 450A | 13.2/ 27.0KW |
8 | Molicel P45B | 45AH/ 2700WH | 220/ 450A | 13.2/ 27.0KW |
9 | Molicel P50B | 50AH/ 3000WH | 220/ 500A | 13.2/ 30.0KW |
