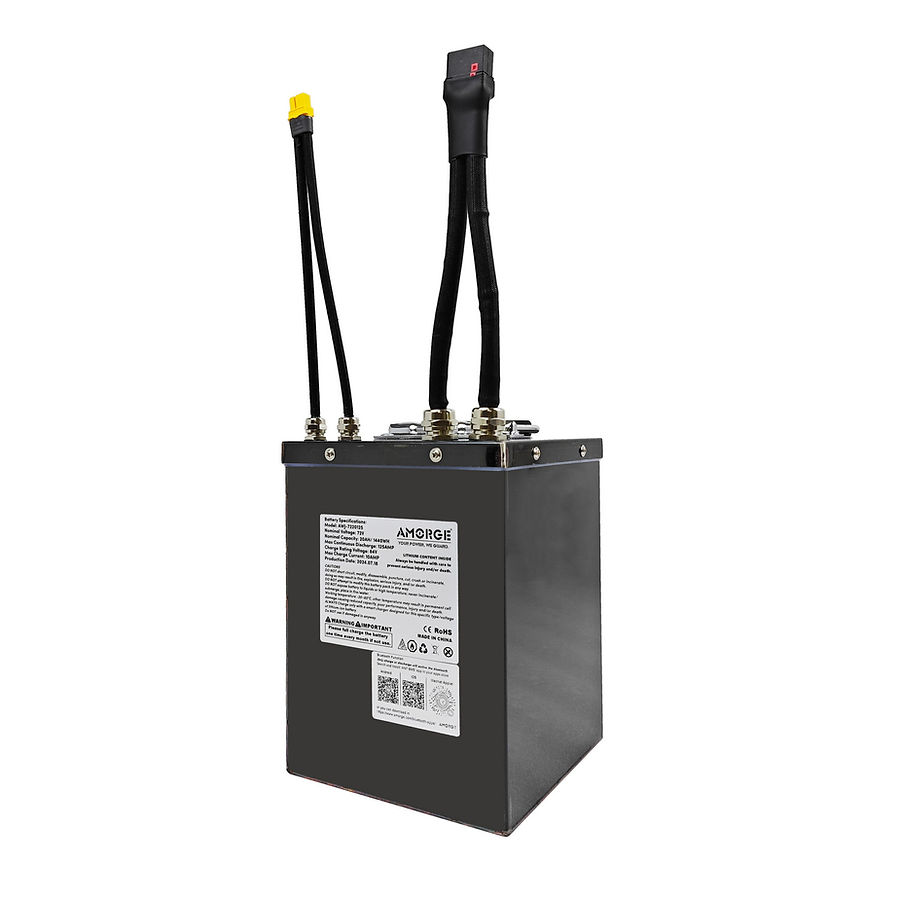

AMORGE 20S5P 72V 20AH 120AMP Battery with Metal Box
Specs
Nominal Voltage | 72V |
Nominal Capacity | 20AH/ 1440WH |
Max Continuous Discharge Current | 120AMP |
Max Pulse Discharge Current | 175AMP |
Max Support Rating Power | 8.64KW |
Max Support Pulse Power | 12.6KW |
Charge Rating Voltage | 84V |
Max Charge Current | 10AMP |
Cell Type | EVE 40P |
BMS Type | ANT Bluetooth BMS |
Discharge Port | QS8 (customizable) |
Charge Port | XT60 (customizable) |

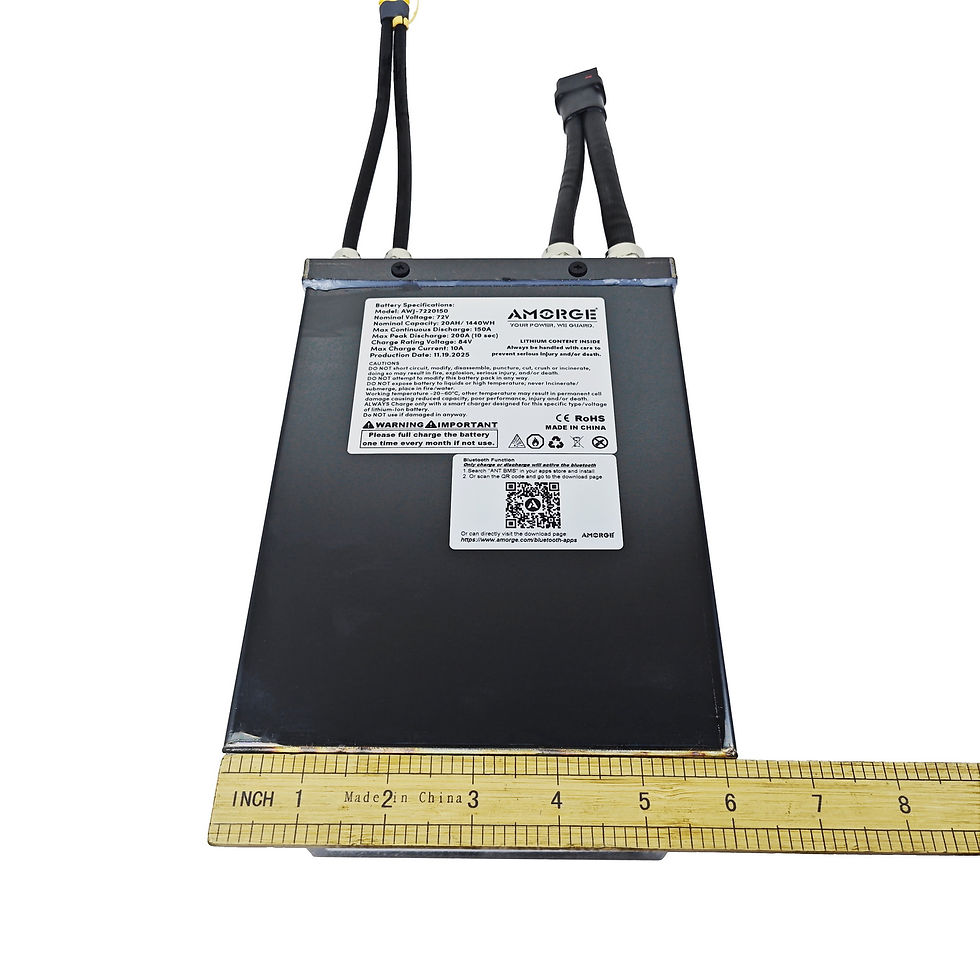

Dimensions | 6.25*6.25*8.5 inches |
Warranty | 1 YEAR |
Options with different cells
72V | 20S5P | ANT Bluetooth BMS | 6.25*6*8.25 inches | Metal Box |
Option | Cell Type | Capacity | Continuous/Peak | Rated/ Peak Power |
1 | EVE 40P | 20AH/ 1440WH | 120/ 200AMP | 8.64/14.4KW |
2 | Saumgung 50S | 25AH/ 1800WH | 120/ 175AMP | 8.64/ 12.6KW |
3 | Molicel P42A | 21AH/ 1512WH | 170/ 225AMP | 12.6/ 16.2KW |
4 | Molicel P45B | 22.5AH/ 1620WH | 170/ 225AMP | 12.6/ 16.2KW |
5 | Molicel P50B | 25AH/ 1800WH | 200/ 250AMP | 14.4/ 18KW |
