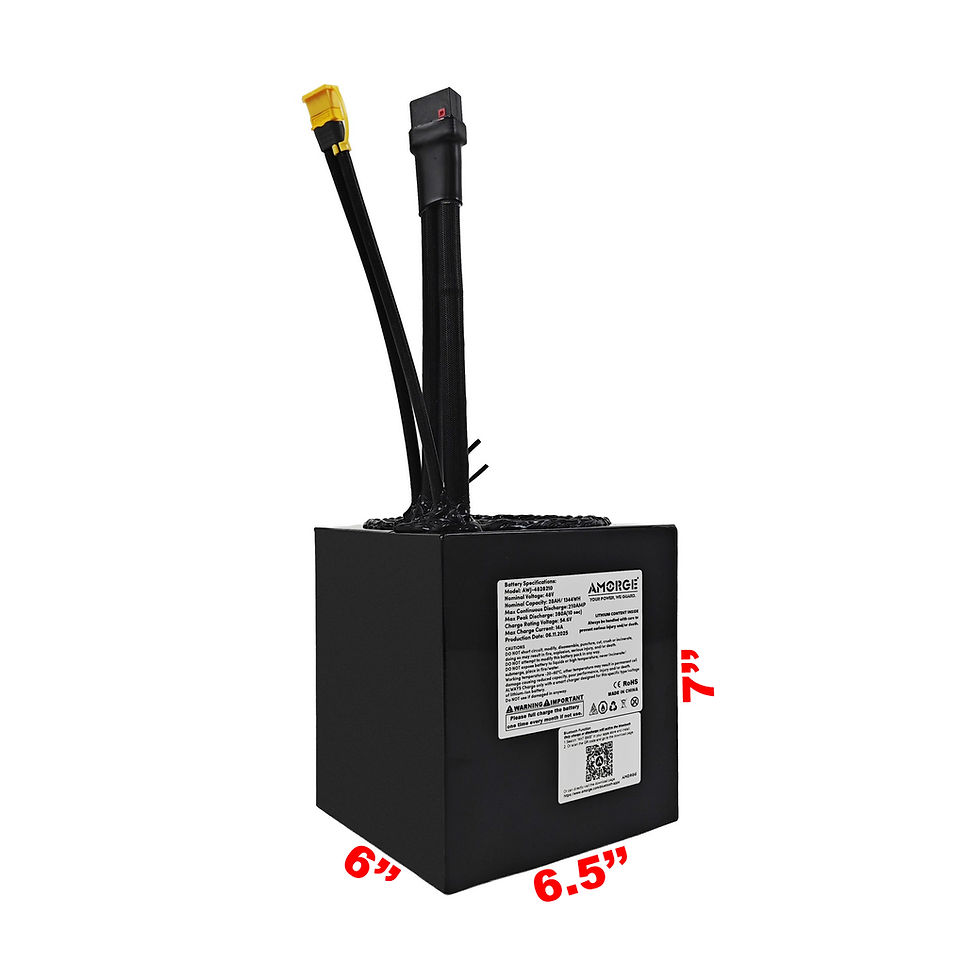

AMORGE 13S7P 48V 28AH 210A Lithium Battery Pack with ANT Bluetooth BMS for Electric Bike
Specification
Nominal Voltage | 48V |
Nominal Capacity | 28AH/ 1456WH |
Max Continuous Discharge Current | 210A |
Max Pulse Discharge Current | 280A (10sec) |
Max Support Rating Power | 10.08KW |
Max Support Pulse Power | 13.44 |
Charge Rating Voltage | 54.6V |
Max Charge Current | 14A |
Cell Type | EVE 40P |
BMS Type | ANT Bluetooth BMS |
Discharge Port | QS8/QS10 (customizable) |
Charge Port | XT60 (customizable) |
Dimensions | 6*6.5*7 inches (Customizable) |
Warranty | 1 YEAR |
Options with different cells | ||||
48V | 13S7P | ANT Bluetooth BMS | 6*6.5*7 inches (Customizable) | Metal Box |
Option | Cell Type | Capacity | Continuous/ Peak Discharge | Rated/ Peak Power |
1 | EVE 40P | 28AH/ 1344WH | 210/ 280A | 10.08/ 13.44KW |
2 | EVE 40PL | 28AH/ 1344WH | 280/ 350A | 13.44/ 16.80KW |
3 | EVE 50PL | 35AH/ 1680WH | 340/ 420A | 16.32/ 20.16KW |
4 | Samsung 50S | 35AH/ 1680WH | 175/ 215A | 8.40/ 10.32KW |
5 | BAK45D | 31.5AH/ 1512WH | 210/ 350A | 10.08/ 16.80KW |
6 | RS 50 | 35AH/ 1680WH | 280/ 350A | 13.44/ 16.80KW |
7 | Molicel P42A | 29.4AH/ 1411.2WH | 220/ 315A | 10.56/ 15.12KW |
8 | Molicel P45B | 31.5AH/ 1512WH | 220/ 315A | 10.56/ 15.12KW |
9 | Molicel P50B | 35AH/ 1680WH | 280/ 350A | 13.44/ 16.80KW |
