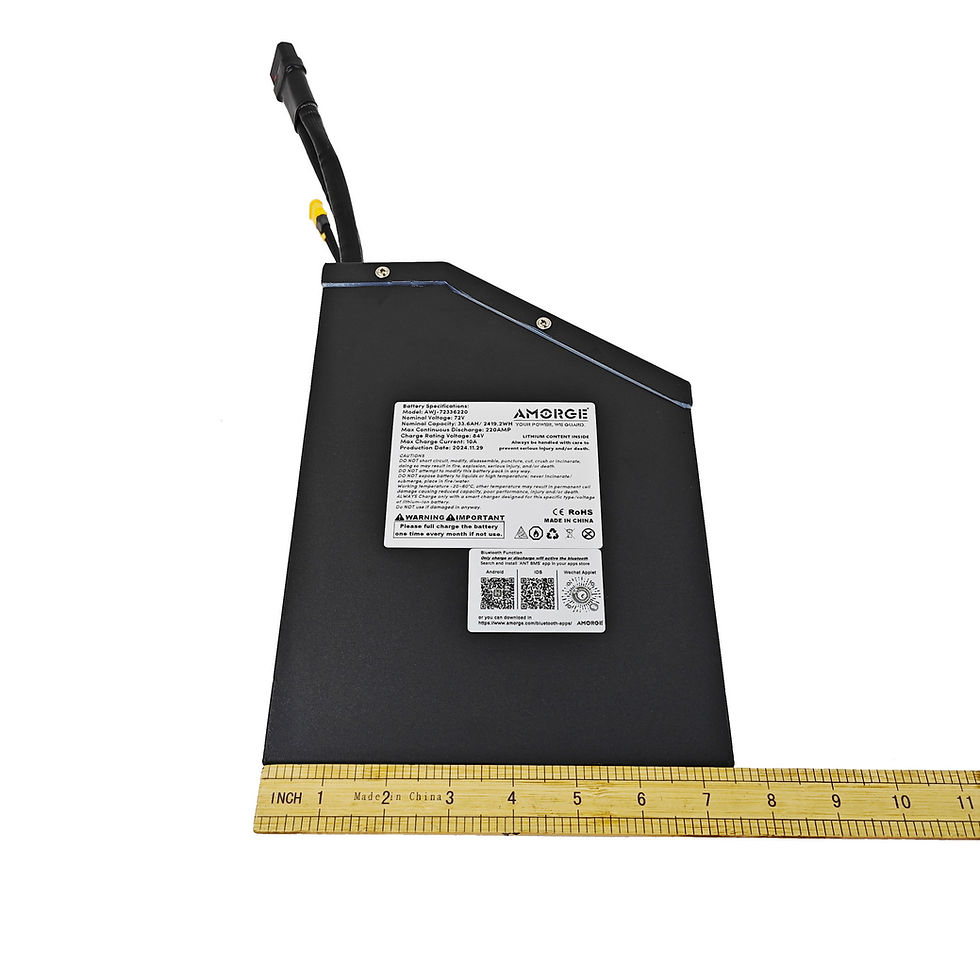

AMORGE 20S8P 72V 32AH 200AMP Battery for MX500 MX650 SX500 with Metal Box
 |  |
Nominal Voltage | 72V |
Nominal Capacity | 32Ah/ 2304Wh |
Max Continuous Discharge Current | 200A |
Max Pulse Discharge Current | 320A |
Max Support Rating Power | 14.4KW |
Max Support Pulse Power | 23.04KW |
Charge Rating Voltage | 84V |
Max Charge Current | 15A |
Cell Type | EVE 40P |
BMS Type | ANT Bluetooth BMS |
Discharge Port | QS8 (customizable) |
Charge Port | XT60 (customizable) |
Dimensions | 10.5*7.5*7.375*6*2.75*6.25 inches |
Warranty | 1 YEAR |
Options with different cells
72V | 20S8P | ANT Bluetooth BMS | 10.5*7.5*7.375*6*2.75*6.25 inches | Metal Box |
Option | Cell Type | Capacity | Continuous/Peak | Rated/ Peak Power |
1 | EVE 40P | 32Ah/ 2304Wh | 200/ 320A | 15.84/ 23.04KW |
2 | EVE 40PL | 32Ah/ 2304Wh | 220/ 400A | 15.84/ 28.8KW |
3 | EVE 50PL | 40Ah/ 2880Wh | 220/ 480A | 15.84/ 34.56KW |
4 | Samsung 50S | 40Ah/ 2880Wh | 200/ 280A | 14.4/ 20.16KW |
5 | Molicel P42A | 33.6Ah/ 2419.2Wh | 220/ 360A | 15.84/ 25.92KW |
6 | Molicel P45B | 36Ah/ 2592Wh | 220/ 360A | 15.84/ 25.92KW |
7 | Molicel P50B | 40Ah/ 2880Wh | 220/ 400A | 15.84/ 28.8KW |
8 | BAK 45D | 36Ah/ 2592Wh | 220/ 400A | 15.84/ 28.8KW |
9 | RS 50 | 40Ah/ 2880Wh | 220/ 480A | 15.84/ 34.56KW |
60V | 16S10P | ANT Bluetooth BMS | 10.5*7.5*7.375*6*2.75*6.25 inches | Metal Box |
Option | Cell Type | Capacity | Continuous/Peak | Rated/ Peak Power |
1 | EVE 40P | 40Ah/ 2400Wh | 220/ 400A | 13.2/ 24KW |
2 | EVE 40PL | 40Ah/ 2400Wh | 220/ 500A | 13.2/ 30KW |
3 | EVE 50PL | 50Ah/ 3000Wh | 220/ 550A | 13.2/ 33KW |
4 | Samsung 50S | 50Ah/ 3000Wh | 220/ 350A | 13.2/ 21KW |
5 | Molicel P42A | 42Ah/ 2520Wh | 220/ 450A | 13.2/ 27KW |
6 | Molicel P45B | 45Ah/ 2700Wh | 220/ 450A | 13.2/ 27KW |
7 | Molicel P50B | 50Ah/ 3000Wh | 220/ 500A | 13.2/ 30KW |
8 | BAK 45D | 45Ah/ 2700Wh | 220/ 500A | 13.2/ 30KW |
9 | RS 50 | 50Ah/ 3000Wh | 220/ 500A | 13.2/ 30KW |
