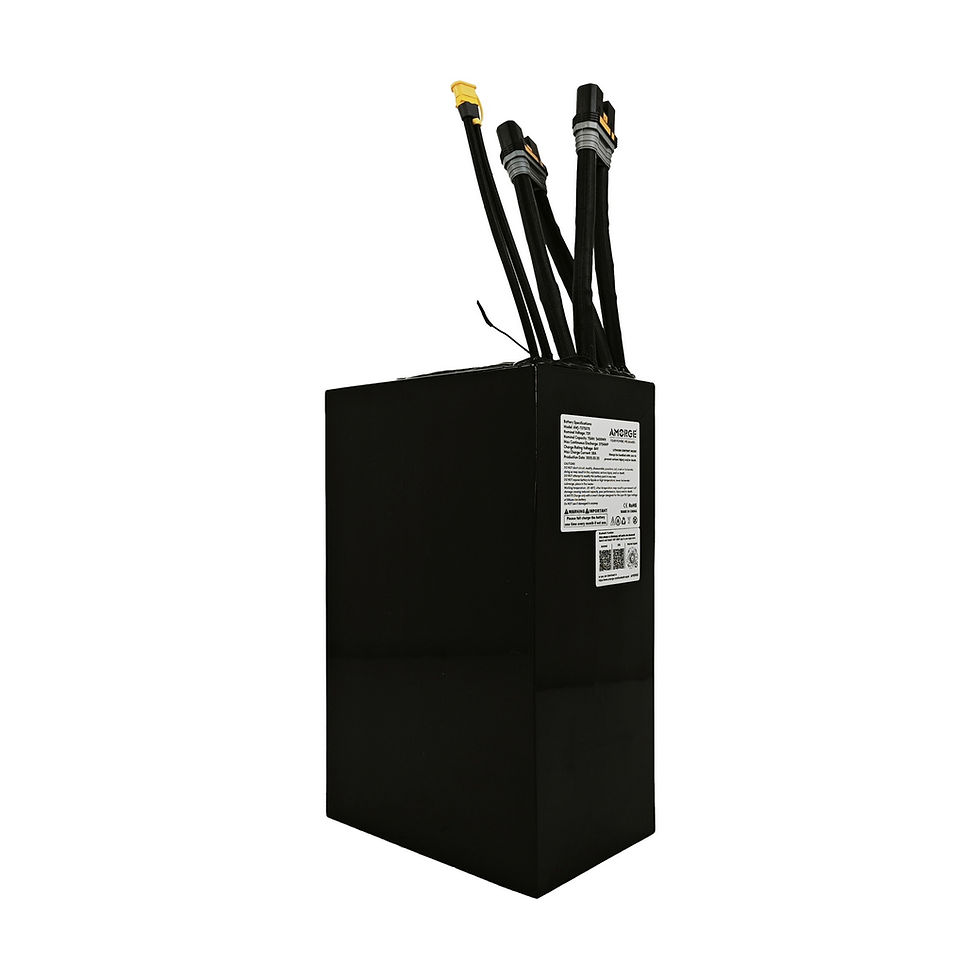

AMORGE 20S15P 72V 75AH 375A Lithium Battery Pack with ANT Bluetooth BMS for Electric Bike
Nominal Voltage | 72V |
Nominal Capacity | 75AH/ 5400WH |
Max Continuous Discharge Current | 375A |
Max Pulse Discharge Current | 525A |
Max Support Rating Power | 27KW |
Max Support Pulse Power | 37.8KW |
Charge Rating Voltage | 84V |
Max Charge Current | 37A |
Cell Type | Samgung 50S |
BMS Type | ANT Bluetooth BMS |
Discharge Port | QS10 (customizable) |
Charge Port | XT60 (customizable) |
Dimensions | 6*9*14.5 inches |
Warranty | 1 YEAR |
Options with different cells
72V | 20S15P | 6*9*14.5 inches | ANT Bluetooth BMS | Customizable |
item | Cell Type | Capacity | Continuous/ Peak | Rated/ Peak Power |
1 | EVE 40P | 60AH/ 4320WH | 420/ 600A | 30.24/ 43.20KW |
2 | EVE 40PL | 60AH/ 4320WH | 420/ 750A | 30.24/ 54KW |
3 | EVE 50PL | 75AH/ 5400WH | 420/ 900A | 30.24/ 64.8KW |
4 | Samsung 50S | 75AH/ 5400WH | 375/ 525A | 27/ 37.8KW |
5 | BAK 45D | 67.5AH/ 4860WH | 420/ 750A | 30.24/ 54KW |
6 | RS 50 | 75AH/ 5400WH | 420/ 750A | 30.24/ 54KW |
7 | Molicel P42A | 63AH/ 4536WH | 420/ 675A | 30.24/ 48.6KW |
8 | Molicel P45B | 67.5AH/ 4860WH | 420/ 675A | 30.24/ 48.6KW |
9 | Molicel P50B | 75AH/ 5400WH | 420/ 750A | 30.24/ 54KW |
