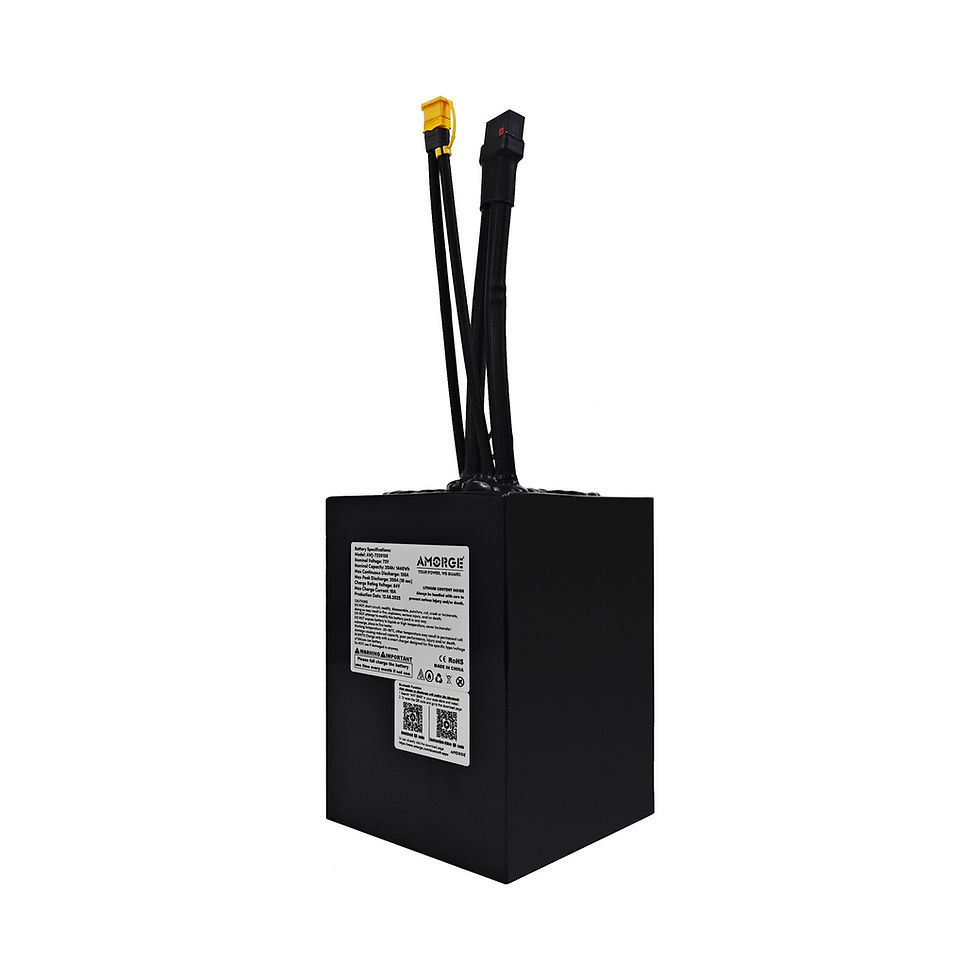

AMORGE 20S5P 72V 20AH 120AMP Battery
Specs
Nominal Voltage | 72V |
Nominal Capacity | 20AH/ 1440WH |
Max Continuous Discharge Current | 120AMP |
Max Pulse Discharge Current | 175AMP |
Max Support Rating Power | 8.64KW |
Max Support Pulse Power | 12.6KW |
Charge Rating Voltage | 84V |
Max Charge Current | 10AMP |
Cell Type | Lishen 21700LA |
BMS Type | ANT Bluetooth BMS |
Discharge Port | QS8 (customizable) |
Charge Port | XT60 (customizable) |
Dimensions | 6*6*8.25 inches |
Warranty | 1 YEAR |
Options with different cells
72V | 20S5P | 6*6*8.25 inches | Customizable |
Cell Type | Capacity | Continuous/Peak | Rated/ Peak Power |
EVE 40P | 20AH/ 1440WH | 120/ 200AMP | 8.64/14.4KW |
Lishen 2170LA | 20AH/ 1440WH | 120/ 175AMP | 8.64/ 12.6KW |
Saumgung 50S | 25AH/ 1800WH | 120/ 175AMP | 8.64/ 12.6KW |
Molicel P42A | 21AH/ 1512WH | 175/ 225AMP | 12.6/ 16.2KW |
Molicel P45B | 22.5AH/ 1620WH | 175/ 225AMP | 12.6/16.2KW |
